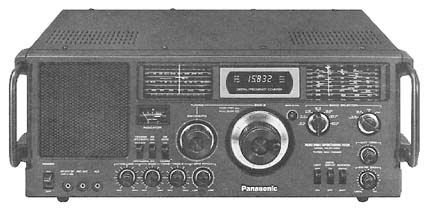

The Panasonic RF-4900 is a sophisticated shortwave communications receiver. Complete worldband coverage from 1.6 to 30 MHz is provided by eight bands. AM from 525 to 1605 kHz and FM band reception from 88 to 108 MHz is also supported. The double conversion superhet circuit provides good sensitivity and image rejection. Wide-Narrow bandwidth selector includes ladder-type ceramic filters to reduce nearby frequency interference. The BFO pitch controls ensures smooth SSB and CW reception.
Features include: ¼" Headphone Jack, S/Battery-Meter, RF Gain, ANL, Light, Bass, Treble, Speaker Jack, Two Tuning Speeds, Handles, Antenna Trimmer, Spinner Knob,Record Jack, Aux. Input Jack. The rear panel has multiple antenna input terminals and an SO-239 jack plus a ferrite antenna for MW.
Please note that the digital display operates on all bands. Operate from 120 VAC or eight D cells. 19 x 7.8 x 14 inches. 20 Lbs.
| General Coverage Communications Receiver | Rating (1-5): HH (2) |
| Made In: Japan 1979-1983 | Voltages: 120 VAC or 12 VDC |
| Coverage: 525-31000 kHz +FM | Readout: Digital Fluor. 1. |
| Modes: AM/SSB/CW | Selectivity: 5/3.4 kHz |
| Circuit: Double Conversion | Physical: 19x7.8x14" 20 Lbs. |
| Features: ¼" Head. Jack, S/Battery-Meter, RF Gain, BFO, ANL, Bass, Treble, Speaker Jack, Two Tuning Speeds, Handles, Antenna Trimmer, Spinner Knob, Light, Record Jack, Auxiliary Audio Input Jack. | |
| Comments: Also operates from eight D cells. The RF-4900 is similar to the earlier RF-4800, but with a green fluorescent digital display rather than a red LED digital display. AM and FM frequencies are digitally displayed. Sold outside the United States as the model DR49. | |
